| Main applications |
|
|
|
| Machine tending, material handling, arc welding |
|
|
|
| Specification |
|
|
|
| Variants: |
Reach |
Payload |
Armload |
| IRB 2600ID-15/1.85 |
1.85 m |
15 kg |
10 kg |

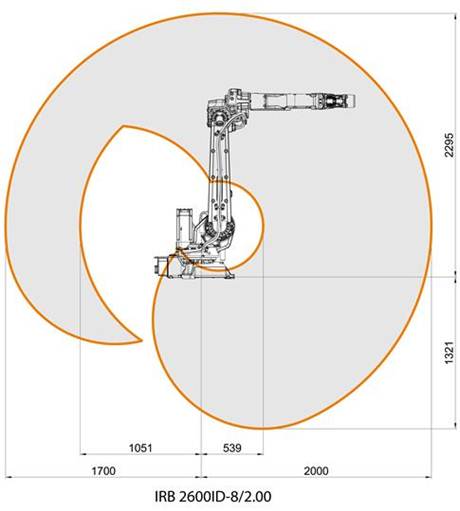

| IRB 2600ID-8/2.00 |
2.00 m |
8 kg |
15 kg |
| Number of axes |
6 |
|
|
| Protection IP54 for upper arm. |
Standard IP67 for base and lower arm. |
|
|
| Mounting |
Floor, wall, shelf, tilted, inverted |
|
|
| IRC5 controller variants |
Single cabinet, Dual cabinet |
|
|
| Physical |
|
|
|
| Dimensions robot base |
676 x 511 mm |
|
|
| Robot height: |
1600 mm |
|
|
| Robot weight |
273 to 276 kg |
|
|
| Performance (according to ISO 9283) |
|
|
|
| Position repeatability (RP) |
0.023 - 0.026 mm |
|
|
| Path repeatability (RT) |
0.27 - 0.30 mm |
|
|
| Movement |
|
|
|
| Axis movements |
Working range |
Maximum speed |
|
| Axis 1 |
+180° to -180° |
175°/s |
|
| Axis 2 |
+155° to -95° |
175°/s |
|
| Axis 3 |
+75° to -180° |
175°/s |
|
| Axis 4 |
+175° to -175° |
360°/s |
|
| Axis 5 |
+120° to -120° |
360°/s |
|
| Axis 6 |
+400° to -400° |
500°/s |
|
| |
|
|
|
| Electrical Connections |
|
|
|
| Supply voltage |
200-600 V, 50-60 Hz |
|
|
| |
|
|
|
| Environment |
|
|
|
| Ambient temperature for mechanical unit: |
|
|
|
| During operation |
+5°C (41°F) to +45°C (113°F) |
|
|
| During transportation and storage |
-25°C (13°F) to +55°C (131°F) |
|
|
| For short periods (max 24h) |
up to +70°C (158°F) |
|
|
| Relative humidity |
Max. 95% |
|
|
|
Safety emergency stops and safety functions,
3-position enabling device
|
Double circuits with supervision, |
|
|
| Emission |
EMC/EMI shielded |
|
|
| Data and dimensions may be changed without notice |
|
|
|
